Product Description

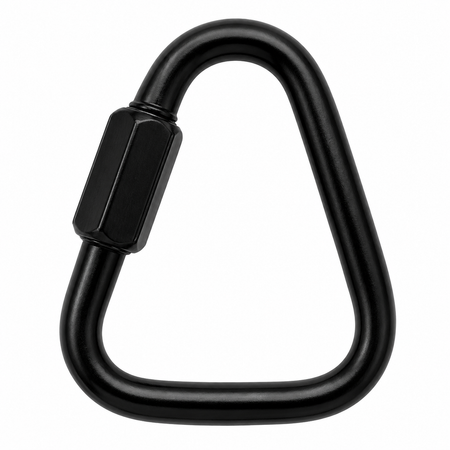

TRIANGULAR QUICK LINK
Triangular quick link made of stainless steel 316. It can be used to connect the chest ascender to the harness. Available in three sizes. High quality, tested piece by piece.
Attention: the part numbers in the chart below that do not mention a certification are not PPE and are therefore not suitable for human suspension.
Standards - EN 12275/Q, EN 362/Q, UIAA
Material - Stainless Steel 316
Major Axis Load - 40, 60, / M.B.S. kN
Minor Axis Load - 10, 30, / M.B.S. kN
Main Axis Load - / , / , 12250 B.L. kg
Main Axis Load - / , / , 2450 W.L.L. kg
Weight - 80, 155, 420g
A. Length - 72, 86, 123 mm
B. Width - 56, 66, 85 mm
C. Body Diameter 8, 10, 14 mm
D. Opening - 11, 12, 17 mm
