Product Description
BASKET STRETCHER FOR LAND-BASED SCENARIOS

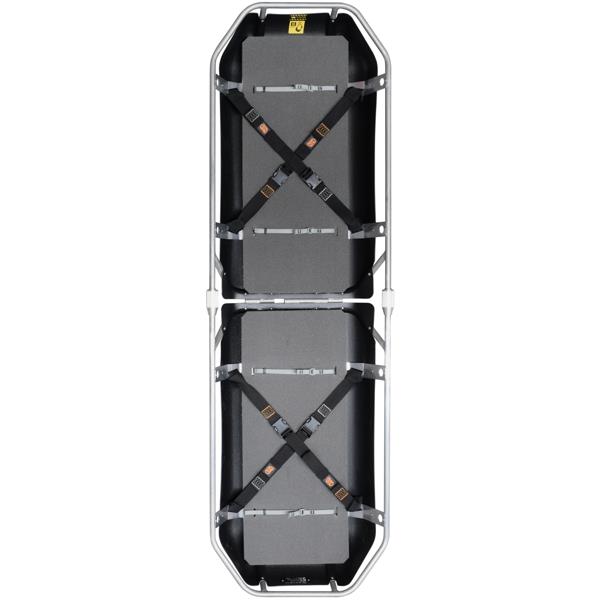

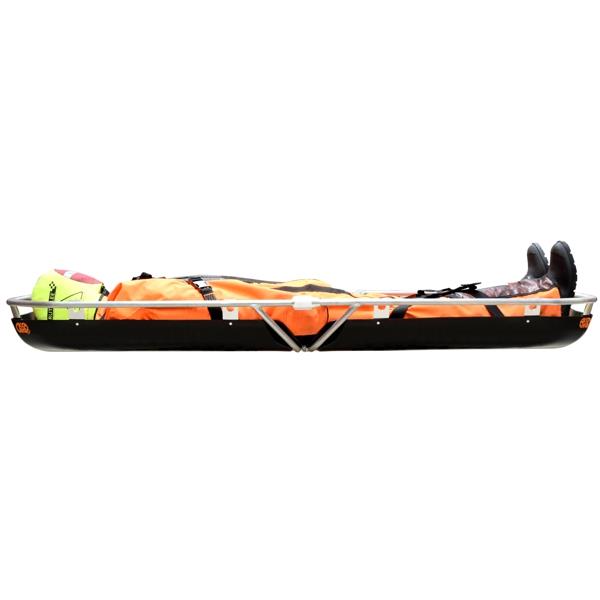

Extremely lightweight shell stretcher that can be disassembled into two parts for easy transport, equipped with internal padding and fastening straps.
Features:
- Lightweight aluminium alloy frame, thermoformed HDPE (High Density Polyethylene) protective shell, offering excellent patient protection.

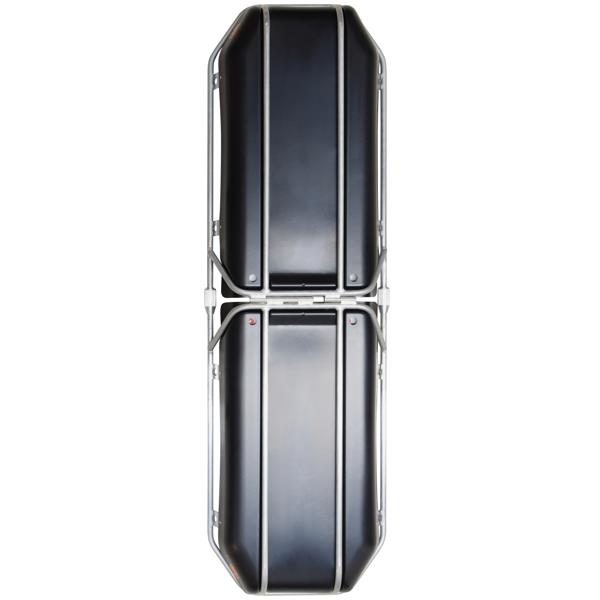

- Can be dragged along the ground thanks to the specific geometry of the base.
- Easy to clean and disinfect thanks to removable inner pads.
- Easy to transport by hand thanks to the tubular structure that runs around the perimeter for easy handling by multiple operators.

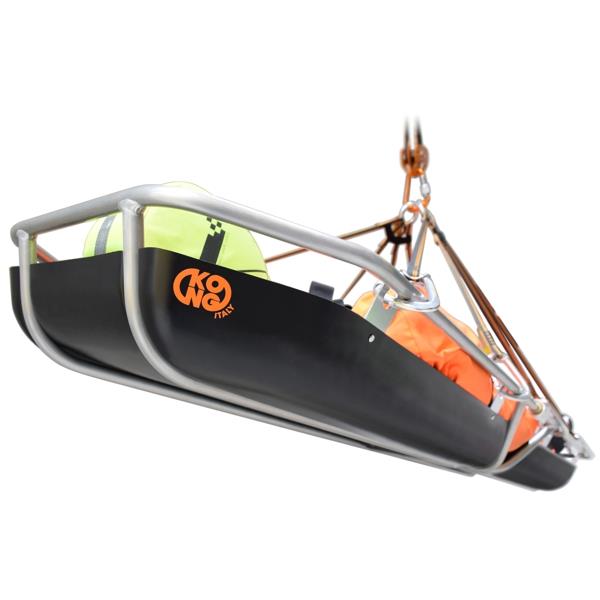

- Suitable for helicopter transport (length just under 2m is compatible with most helicopter cabins).

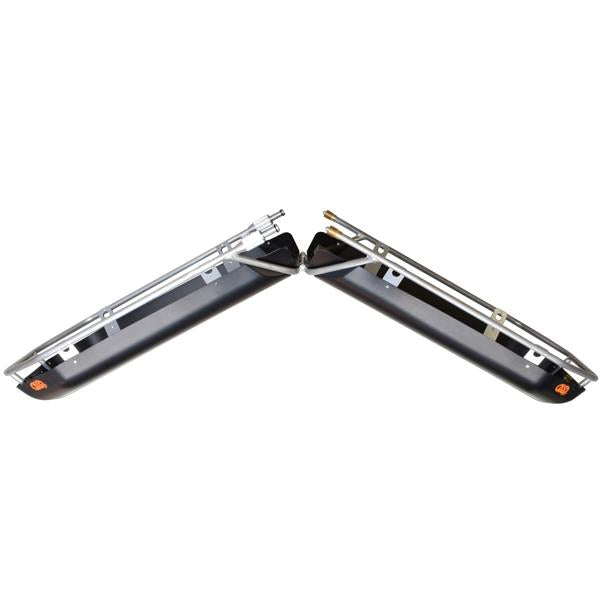

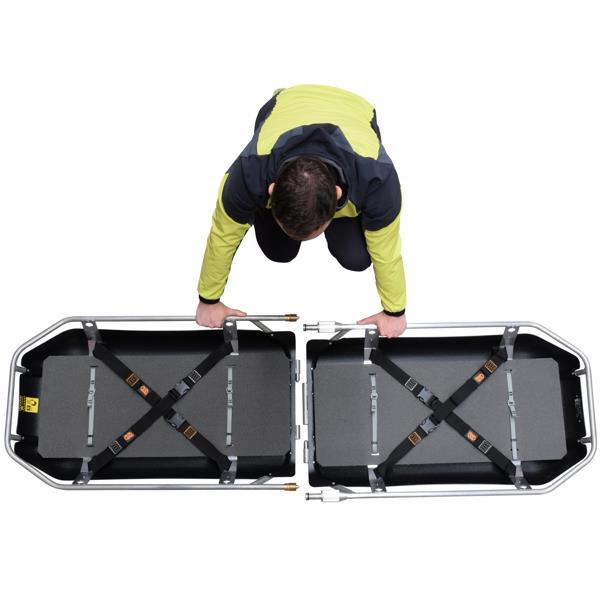

- Can be divided into 2 pieces and easily loaded on the shoulders using the straps provided.

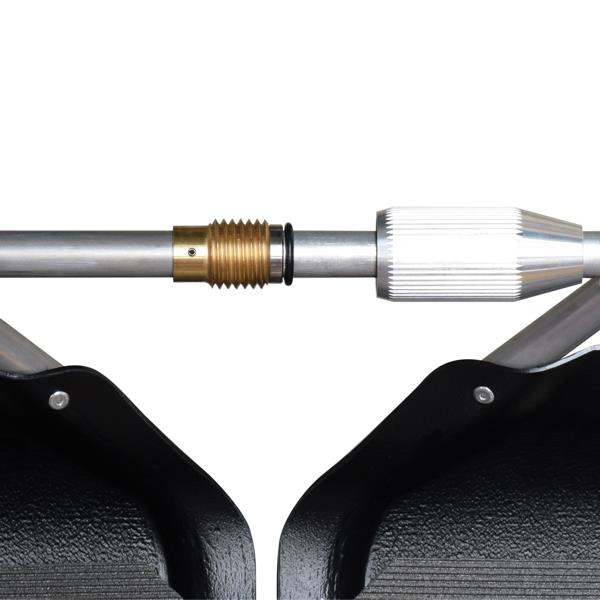

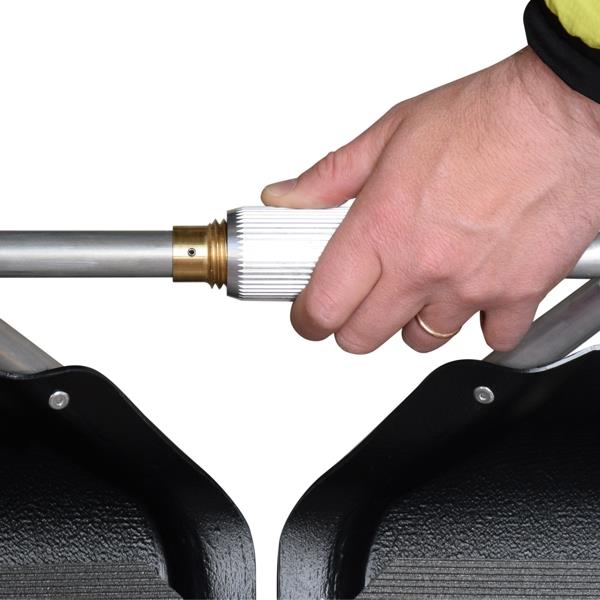

- Optimised connection system between the two halves: central hinge for quick and easy connection, self-centring and coloured side pins immediately verify correct assembly, and screw sleeve for quick closure.

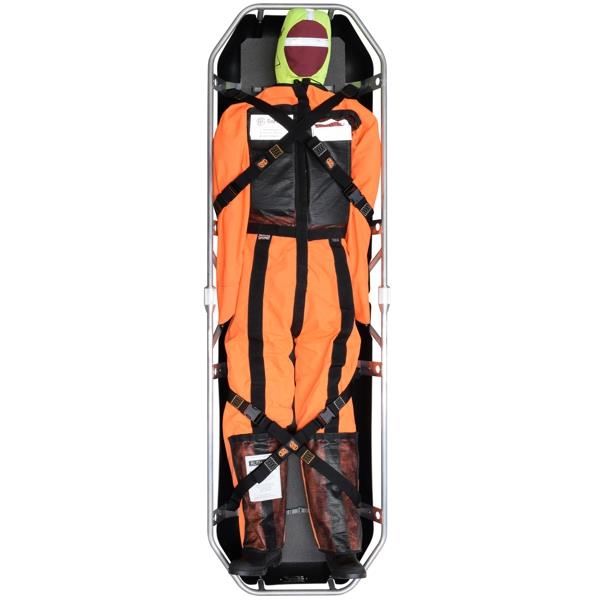

- The symmetrical shape allows the patient to be positioned facing either direction.
- The straps are equipped with automatic buckles made of high-strength polymer material.
- Can be used with an inclination up to 45°.
- Quick product identification via unique serial code and NFC chip.
Accessories:

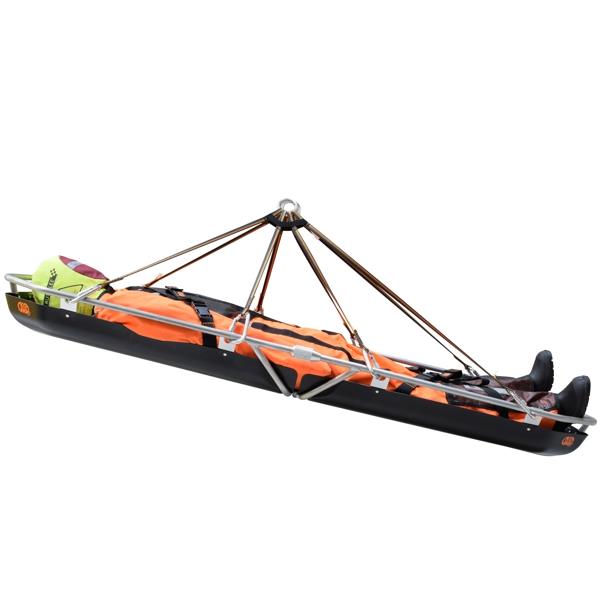

- Aries suspension kit #880070100KK (included)
- Removable shoulder straps for shoulder carry #880062KITKK (optional)

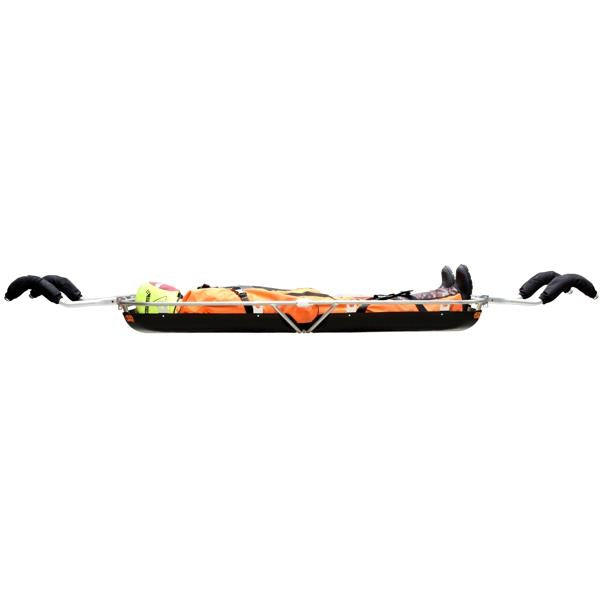

- 911 Wheel Kit #880080000KK (optional)
- 911 Carry Bag #880060200KK (optional)
- Flok-IT Flotation System #880020300KK (optional)
- X-Trim 2.0 Carbon Spinal Board #85516N000KK (optional)
- Vacuum 4 mattress #872070000KK (optional)
Technical Data:
- Length: 1980 mm
- Width: 600 mm
- Height: 170 mm
- Weight: 9.50 kg (excluding shoulder straps and hanging kit)
High quality product, designed and manufactured in Italy!
Ref. - 880.07
DM - Classe I
UDI-DI - 08023577071237
Standards - EU REGULATION 2017/745, EASA CM-CS005
Material - Alu Alloy, HDPE
Length - 1980 mm
Width - 600 mm
Height - 170 mm
Weight - 9.50 kg (excluding shoulder straps and hanging kit)
