Product Description
Shipping January 2026!

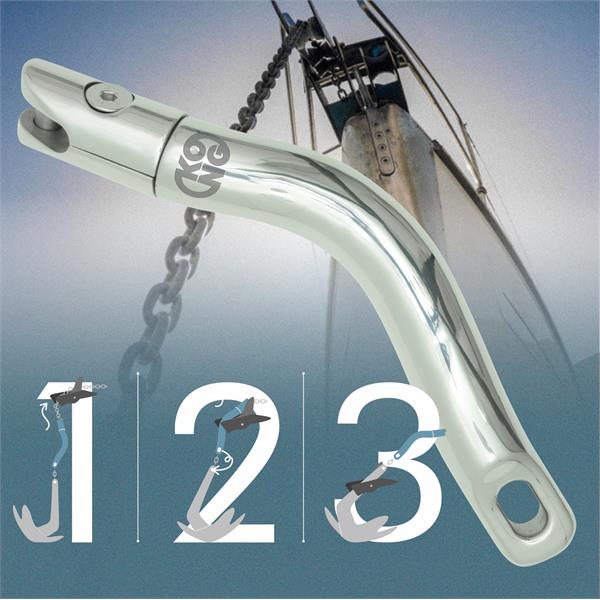

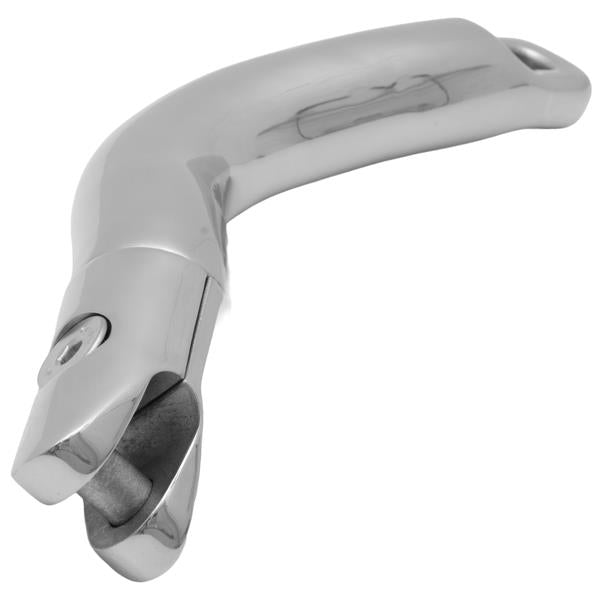

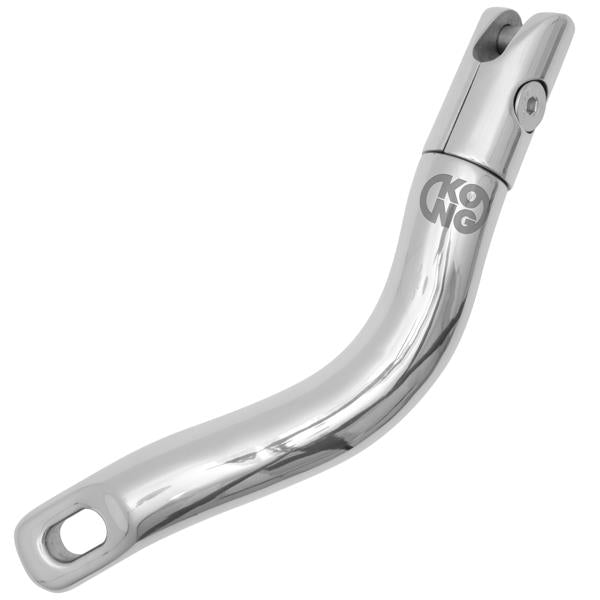

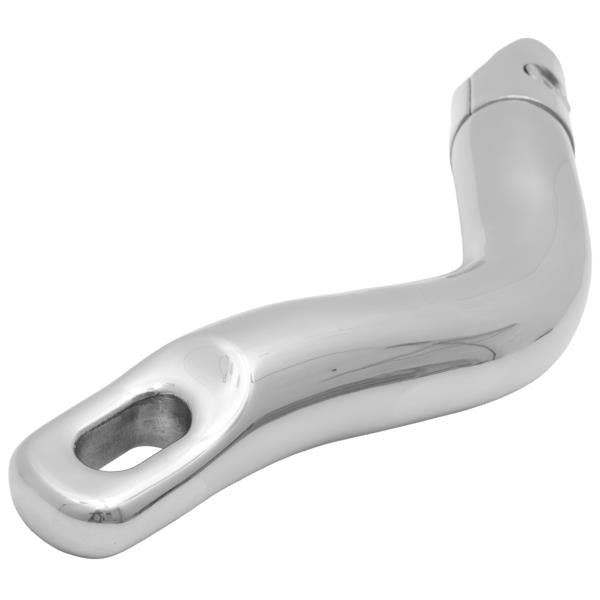

TWISTED SWIVEL ANCHOR CONNECTOR | AISI 316
High-quality AISI 316 stainless steel swivel connector.

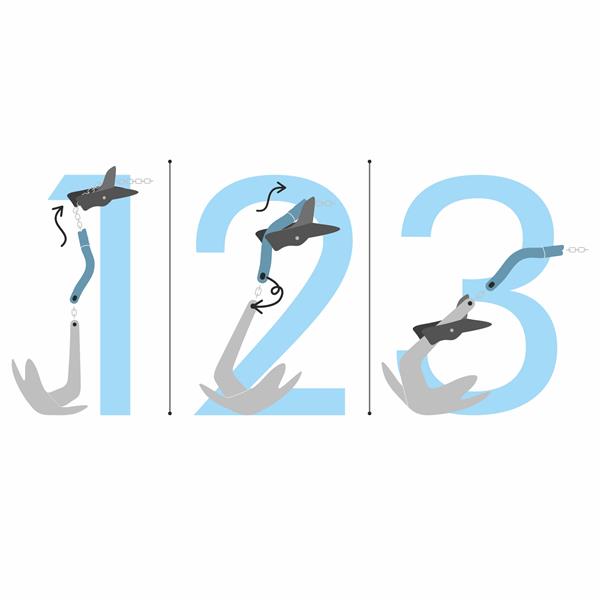

With many asymmetric anchors, it may happen that during retrieval the anchor reaches the bow roller in the wrong orientation.
This connector automatically rotates the anchor into the correct position as it is guided toward the bow roller or hawse pipe, ensuring fast and accurate alignment.
The fixed eye is designed to be attached to the anchor using a shackle.
The rotating end prevents the chain from twisting.
Available in 2 sizes:
- For 6–8 mm chains
- For 10–12 mm chains

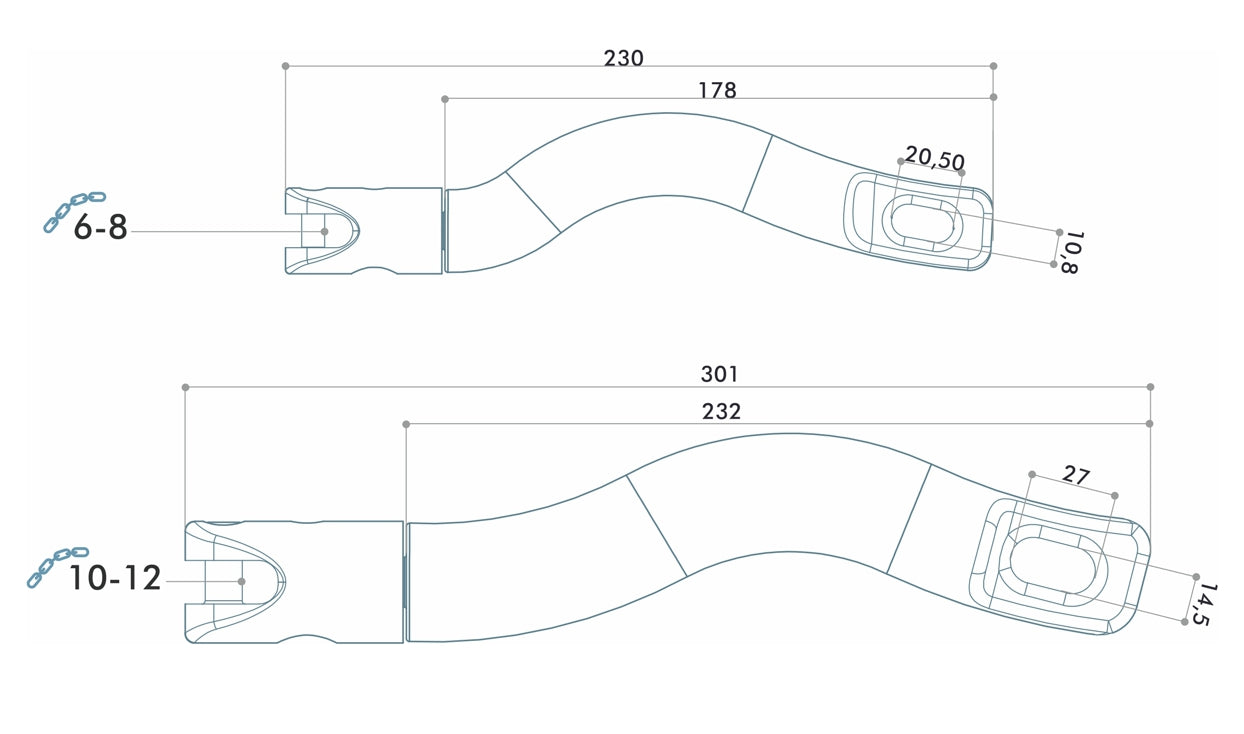

2500 Kgf Model
Overall length 230 mm
Main curved body length 178 mm
End fitting width 20.50 mm
End fitting height 10.8 mm
Chain size range 6 to 8
Weight 925 g
Load 2500 Kgf
Size 06
5000 Kgs Model
Overall length 301 mm
Main curved body length 232 mm
End fitting width 27 mm
End fitting height 14.5 mm
Chain size range 10 to 12
Weight 2180 g
Load 5000 Kgf
Size 10
